Augmentations

I designed and 3D printed custom components to enhance the functionality and durability of UAV platforms. Using Fusion 360, I modeled parts specifically tailored for our quadcopter builds, focusing on mechanical protection, modularity, and ease of assembly.

Key Features & Implementation:

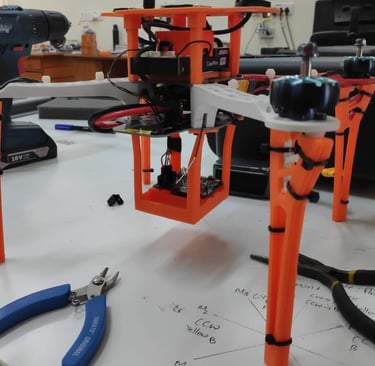

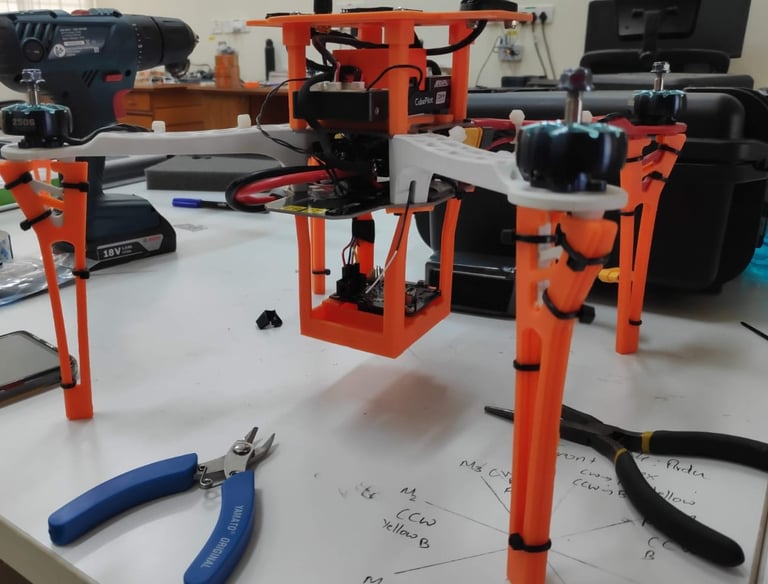

• Custom Landing Gears: Designed lightweight, impact-resistant landing gear optimized for stability and shock absorption during takeoff and landing.

• Camera Enclosures: Developed protective housings for FPV and onboard cameras, ensuring secure mounting while minimizing added weight.

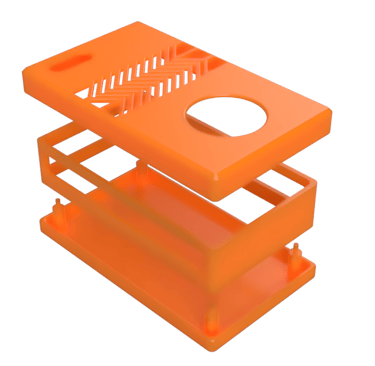

• Flight Controller Boxes: Modeled enclosures to safely house flight controllers, sensors, and wiring, improving durability and reducing vibration impact on sensitive electronics.

• Fabrication: 3D printed parts in PLA/ABS with attention to layer orientation and infill density to balance strength and weight.

• Integration: Components designed for easy attachment and removal, enabling rapid prototyping and experimentation across different UAV builds.

Lessons Learned:

• Gained practical experience in mechanical design for UAV systems, balancing weight, rigidity, and aerodynamics.

• Learned how to translate functional requirements into 3D-printable geometries, considering tolerances and material constraints.

• Developed an appreciation for modular design, allowing UAV components to be swapped or upgraded efficiently.

I Wish I Could:

• Explore lightweight composite materials (carbon fiber, nylon) for stronger and lighter UAV components.

• Implement integrated vibration dampening for electronics enclosures and camera mounts.

• Design modular attachments for additional sensors or payloads, supporting advanced UAV experiments.
